IPC-M015ASC

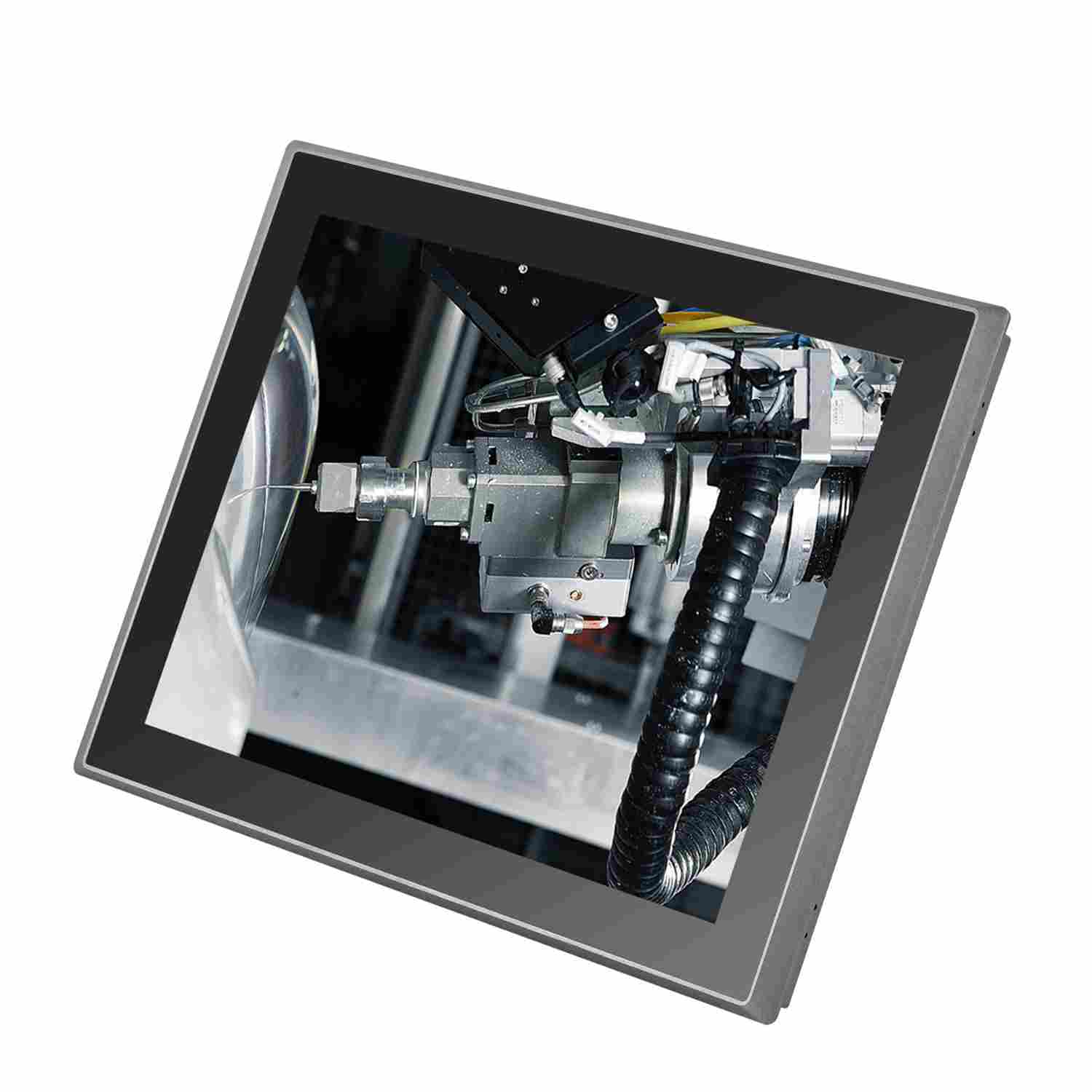

IPC-M015ASC | 15″ Panel PC Intel Celeron J4125
IPC-M015ASC | 15″ Panel PC Intel Celeron J4125
IPC-M015ASC | 15″ Panel PC Intel Celeron J4125
IPC-M015ASC | 15″ Panel PC Intel Celeron J4125
IPC-M015ASC | 15″ Panel PC Intel Celeron J4125
IPC-M015ASC | 15″ Panel PC Intel Celeron J4125

IPC-M015ASC | 15" Panel PC Intel Celeron J4125

  • Led Panel15
  • CPUIntel Celeron Quad Core J4125 2.0GHz
  • Resolution1024 x 768
  • IP RatingIP65
  • Memory1*DDR4 SODIMM
  • Storage1*M.2 2242/2260/2280 SATA / 1*2.5'' SATA / 1*M.2 2280 NVME
  • I/O Port1*HDMI, 6*USB, 2*LAN, 2*RS232/422/485
  • TouchscreenCapacitive / Resistive
  • Power InputDC 9V~36V Wide Voltage
Product Highlight
Specification
Dimension
Download

IPC-M015ASC | 15" Panel PC Intel Celeron J4125



◕  15" TFT LED with Multi-points Projected Capacitive Touch

◕  Intel Celeron Quad Core J4125 2.0GHz

◕  1x 1*DDR4 SODIMM

◕  2*LAN (4*LAN optional), 2xRS232/422/485

◕  LCD+HDMI dual display, synchronous/asynchronous mode

◕  Wide voltage DC 9V~36V,

◕  IP65 Compliant Front Panel

IPC-M015ASC
System CPU Intel Celeron Quad Core J4125 2.0GHz
Memory 1*DDR4 SODIMM
Storage 1*M.2 2242/2260/2280 SATA / 1*2.5'' SATA / 1*M.2 2280 NVME
Network 2*2.5 GbE RJ45 Intel® i225V (4*2.5GbE RJ45 Intel i225V)
Operation System Win 10/11, WES 10, LINUX
I / O HDMI 1*HDMI
LAN 2*LAN (4*LAN optional)
USB 4*USB 2.0, 2*USB 3.0
COM 2*RS232/422/485
Others 1*Expansion IO: 4*3 wire COM, 1*GPIO, 1*remote switch interface
1* Audio line-out
2*8Ω 1W Speak out(optional)
1*AT/ATX Switch
4G /5G / WiFi / Bluetooth ( Optional )
LCD Panel Panel Size 15" LED
Resolution 1024 x 768
Aspect Ratio 4:3
Display Brightness 350 cd/m2
Viewing Angle(CR>=10) -85~85° (H), -85~85° (V)
Backlight Lifetime 30000 Hr (min.)
Touch screen Type Multi-points Projected Capacitive Touch
Transmittance >85%
Response Time <5ms
Touch Life ≧ 5000W
Physical Material Aluminium Alloy, Front IP65
Mounting VESA: 75*75mm, 100*100mm
Product Dimension 376.13x285.34x68.90 mm
Cut-out Size 365 x 276 mm
Power and Environment Operating Temperature -20°C ~ 60°C
Storage Temperature -30°C ~ 70°C
Relative Humidity 10~90% @30°C, non-condensing
Input DC IN 9V~36V

10.1″ Industrial Panel PC Series

Model No.Screen SizeCPUMemoryHarddiskI/OTouch Features
IPC-L010BWC10.1″
1280×800
16:10
400 cd/m2
Intel Celeron J1900DDR3L
 4GB-8GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/4*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/WiFi/Bluetooth ( optional )
Operating System: Windows 7/8/10, WES 7,LINUX”
IPC-M010AWC10.1″
1280×800
16:10
400 cd/m2
Intel Celeron J4125DDR4
 4GB-16GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-H010AWC10.1″
1280×800
16:10
400 cd/m2
Intel Celeron J6412DDR4
 4GB-16GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-P010AWC10.1″
1280×800
16:10
400 cd/m2
Intel Core i5-8260UDDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-Q010AWC10.1″
1280×800
16:10
400 cd/m2
Intel Core i7-8569UDDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-5010AWC10.1″
1280×800
16:10
400 cd/m2
Intel Core i5-10210UDDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-7010AWC10.1″
1280×800
16:10
400 cd/m2
Intel Core i7-10810UDDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-5010AWC-210.1″
1280×800
16:10
400 cd/m2
Intel Core i5-1135G7DDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-7010AWC-210.1″
1280×800
16:10
400 cd/m2
Intel Core i7-1165G7DDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”

12.1″ Industrial Panel PC Series

Model No.Screen SizeCPUMemoryHarddiskI/OTouch Features
IPC-L012BSC12.1″
1024×768
4:3
500 cd/m2
Intel Celeron J1900DDR3L
 4GB-8GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/4*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/WiFi/Bluetooth ( optional )
Operating System: Windows 7/8/10, WES 7,LINUX”
IPC-M012ASC12.1″
1024×768
4:3
500 cd/m2
Intel Celeron J4125DDR4
 4GB-16GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-H012ASC12.1″
1024×768
4:3
500 cd/m2
Intel Celeron J6412DDR4
 4GB-16GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-P012ASC12.1″
1024×768
4:3
500 cd/m2
Intel Core i5-8260UDDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-Q012ASC12.1″
1024×768
4:3
500 cd/m2
Intel Core i7-8569UDDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-5012ASC12.1″
1024×768
4:3
500 cd/m2
Intel Core i5-10210UDDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-7012ASC12.1″
1024×768
4:3
500 cd/m2
Intel Core i7-10810UDDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-5012ASC-212.1″
1024×768
4:3
500 cd/m2
Intel Core i5-1135G7DDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-7012ASC-212.1″
1024×768
4:3
500 cd/m2
Intel Core i7-1165G7DDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”

15″ Industrial Panel PC Series

Model No.Screen SizeCPUMemoryHarddiskI/OTouch Features
IPC-L015BSC15″
1024×768
4:3
350 cd/m2
Intel Celeron J1900DDR3L
 4GB-8GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/4*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/WiFi/Bluetooth ( optional )
Operating System: Windows 7/8/10, WES 7,LINUX”
IPC-M015ASC15″
1024×768
4:3
350 cd/m2
Intel Celeron J4125DDR4
 4GB-16GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-H015ASC15″
1024×768
4:3
350 cd/m2
Intel Celeron J6412DDR4
 4GB-16GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-P015ASC15″
1024×768
4:3
350 cd/m2
Intel Core i5-8260UDDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-Q015ASC15″
1024×768
4:3
350 cd/m2
Intel Core i7-8569UDDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-5015ASC15″
1024×768
4:3
350 cd/m2
Intel Core i5-10210UDDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-7015ASC15″
1024×768
4:3
350 cd/m2
Intel Core i7-10810UDDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-5015ASC-215″
1024×768
4:3
350 cd/m2
Intel Core i5-1135G7DDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-7015ASC-215″
1024×768
4:3
350 cd/m2
Intel Core i7-1165G7DDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”

15.6″ Industrial Panel PC Series

Model No.Screen SizeCPUMemoryHarddiskI/OTouch Features
IPC-L156BWC15.6″
1920×1080
16:9
250 cd/m2
Intel Celeron J1900DDR3L
 4GB-8GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/4*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/WiFi/Bluetooth ( optional )
Operating System: Windows 7/8/10, WES 7,LINUX”
IPC-M156AWC15.6″
1920×1080
16:9
250 cd/m2
Intel Celeron J4125DDR4
 4GB-16GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-H156AWC15.6″
1920×1080
16:9
250 cd/m2
Intel Celeron J6412DDR4
 4GB-16GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-P156AWC15.6″
1920×1080
16:9
250 cd/m2
Intel Core i5-8260UDDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-Q156AWC15.6″
1920×1080
16:9
250 cd/m2
Intel Core i7-8569UDDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-5156AWC15.6″
1920×1080
16:9
250 cd/m2
Intel Core i5-10210UDDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-7156AWC15.6″
1920×1080
16:9
250 cd/m2
Intel Core i7-10810UDDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-5156AWC-215.6″
1920×1080
16:9
250 cd/m2
Intel Core i5-1135G7DDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-7156AWC-215.6″
1920×1080
16:9
250 cd/m2
Intel Core i7-1165G7DDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”

17″ Industrial Panel PC Series

Model No.Screen SizeCPUMemoryHarddiskI/OTouch Features
IPC-L017BSC17″
1280×1024
5:4
250 cd/m2
Intel Celeron J1900DDR3L
 4GB-8GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/4*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/WiFi/Bluetooth ( optional )
Operating System: Windows 7/8/10, WES 7,LINUX”
IPC-M017ASC17″
1280×1024
5:4
250 cd/m2
Intel Celeron J4125DDR4
 4GB-16GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-H017ASC17″
1280×1024
5:4
250 cd/m2
Intel Celeron J6412DDR4
 4GB-16GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-P017ASC17″
1280×1024
5:4
250 cd/m2
Intel Core i5-8260UDDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-Q017ASC17″
1280×1024
5:4
250 cd/m2
Intel Core i7-8569UDDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-5017ASC17″
1280×1024
5:4
250 cd/m2
Intel Core i5-10210UDDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-7017ASC17″
1280×1024
5:4
250 cd/m2
Intel Core i7-10810UDDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-5017ASC-217″
1280×1024
5:4
250 cd/m2
Intel Core i5-1135G7DDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-7017ASC-217″
1280×1024
5:4
250 cd/m2
Intel Core i7-1165G7DDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”

19″ Industrial Panel PC Series

Model No.Screen SizeCPUMemoryHarddiskI/OTouch Features
IPC-L019BSC19″
1280×1024
5:4
250 cd/m2
Intel Celeron J1900DDR3L
 4GB-8GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/4*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/WiFi/Bluetooth ( optional )
Operating System: Windows 7/8/10, WES 7,LINUX”
IPC-M019ASC19″
1280×1024
5:4
250 cd/m2
Intel Celeron J4125DDR4
 4GB-16GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-H019ASC19″
1280×1024
5:4
250 cd/m2
Intel Celeron J6412DDR4
 4GB-16GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-P019ASC19″
1280×1024
5:4
250 cd/m2
Intel Core i5-8260UDDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-Q019ASC19″
1280×1024
5:4
250 cd/m2
Intel Core i7-8569UDDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-5019ASC19″
1280×1024
5:4
250 cd/m2
Intel Core i5-10210UDDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-7019ASC19″
1280×1024
5:4
250 cd/m2
Intel Core i7-10810UDDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-5019ASC-219″
1280×1024
5:4
250 cd/m2
Intel Core i5-1135G7DDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-7019ASC-219″
1280×1024
5:4
250 cd/m2
Intel Core i7-1165G7DDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”

21.5″ Industrial Panel PC Series

Model No.Screen SizeCPUMemoryHarddiskI/OTouch Features
IPC-L215BWC21.5″
1920×1080
16:9
250 cd/m2
Intel Celeron J1900DDR3L
 4GB-8GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/4*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/WiFi/Bluetooth ( optional )
Operating System: Windows 7/8/10, WES 7,LINUX”
IPC-M215AWC21.5″
1920×1080
16:9
250 cd/m2
Intel Celeron J4125DDR4
 4GB-16GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-H215AWC21.5″
1920×1080
16:9
250 cd/m2
Intel Celeron J6412DDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-P215AWC21.5″
1920×1080
16:9
250 cd/m2
Intel Core i5-8260UDDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-Q215AWC21.5″
1920×1080
16:9
250 cd/m2
Intel Core i7-8569UDDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-5215AWC21.5″
1920×1080
16:9
250 cd/m2
Intel Core i5-10210UDDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-7215AWC21.5″
1920×1080
16:9
250 cd/m2
Intel Core i7-10810UDDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-5215AWC-221.5″
1920×1080
16:9
250 cd/m2
Intel Core i5-1135G7DDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-7215AWC-221.5″
1920×1080
16:9
250 cd/m2
Intel Core i7-1165G7DDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive/Resistive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”

23.8″ Industrial Panel PC Series

Model No.Screen SizeCPUMemoryHarddiskI/OTouch Features
IPC-M024AWC23.8″
1920×1080
16:9
250 cd/m2
Intel Celeron J4125DDR4
 4GB-16GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-H024AWC23.8″
1920×1080
16:9
250 cd/m2
Intel Celeron J6412DDR4
 4GB-16GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-P024AWC23.8″
1920×1080
16:9
250 cd/m2
Intel Core i5-8260UDDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-Q024AWC23.8″
1920×1080
16:9
250 cd/m2
Intel Core i7-8569UDDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-5024AWC23.8″
1920×1080
16:9
250 cd/m2
Intel Core i5-10210UDDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-7024AWC23.8″
1920×1080
16:9
250 cd/m2
Intel Core i7-10810UDDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-5024AWC-223.8″
1920×1080
16:9
250 cd/m2
Intel Core i5-1135G7DDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
IPC-7024AWC-223.8″
1920×1080
16:9
250 cd/m2
Intel Core i7-1165G7DDR4
 4GB-32GB
128G/256G
/512G/1TB  SSD
1*HDMI/2*LAN/
2*COM/6*USB
Capacitive“1. Front IP65
DC9~36V Wide Voltage Input
3G/4G/5G/WiFi/Bluetooth ( optional )
Operating System: Windows® 10/11, WES 10, LINUX”
The prev: The next:

Related recommendations

We use cookies (including third-party cookies), to provide you with the best possible online experience and to tailor content to your interests. By clicking on "Accept all" you agree to the saving and reading of information on your end device. You also agree to the further processing of the collected and read personal data in addition to the possible transfer to countries outside of the EU, for example the US.

GOT IT
